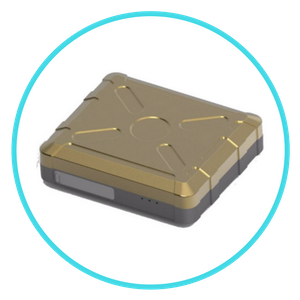

GPS Asset Tracker

Tracker with internal GPS/GSM Active antennas and huge battery backup which can last more than 25 days.

Features

Be aware of the ignition status whenever you need

Instant alert for overspeed, power off, geo-fence

Send instant email/SMSto notify vehicle`s speeding

Offline data stored for 2 days at a frequency of 30 sec

Get the location and status information of any of your devices, from anywhere.

Location uploded following fixed distance, time interval.

Reports iocation in real time through different interfaces

Plug-and-track, easy to swap between vehicles

GSM Working Band Quad-band 850/900/1800/1900MHz

GPRS Multi-slot Class Class B & Class 12

GSM Protocols TCP/UDP/PPP/FTP/HTTP/SMTP/CMUX/SSL

GSM antenna Built in GSM

Memory 4Mb Flash + 4 Mb RAM

GPS Tracking 36mA @ -130dBm

GPS Channel 73 channels

GPS Hot Start < 1s

GPS Cold Start < 60s

GPS Altitude Max.18288 meter's

GPS Protocols Open Protocol

GPS Update Rate > 5Sec

GPS antenna Built in ACTIVE GPS antenna

GPS Accuracy < 5m

Power Supply DC 6V~40V, 4kv Surge Protection with fuse.

Tracking Mode < 40mA / +4V

Operation Temperature -15 °C – +65 °C

Stand by Mode < 8mA / +12V

Battery Capacity 5200mAh

Enclosure Dimension 75 * 88 * 20 mm

Enclosure Type " IP66 " Rated

Battery Backup Up to 18 Hrs.

Warranty 12 months

Accelerometer 3 – Axis accelerometer
